Guitar #6 c. 2001
When I took up guitar building, I began by attempting to build an archtop guitar. I quickly concluded that I should try something simpler, so I put that aside and built five other guitars before returning to the archtop in 2001. I carved the top from a hunk of cedar I glued up from lumber I found at the local yard. It was a huge thing, and it sounded great, but when I tried to stick a pickup on it I ruined the top. I was going to throw it away, but then decided to see if a simple domed top would work. I removed the old top and made a new one for the body.

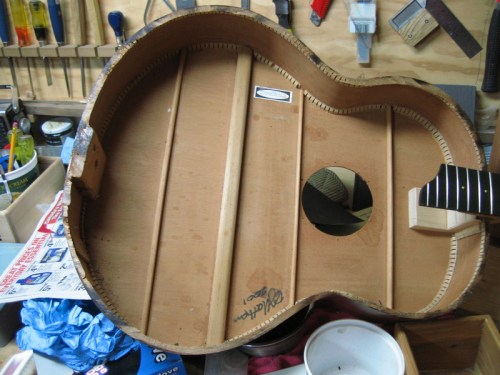

body with top removed

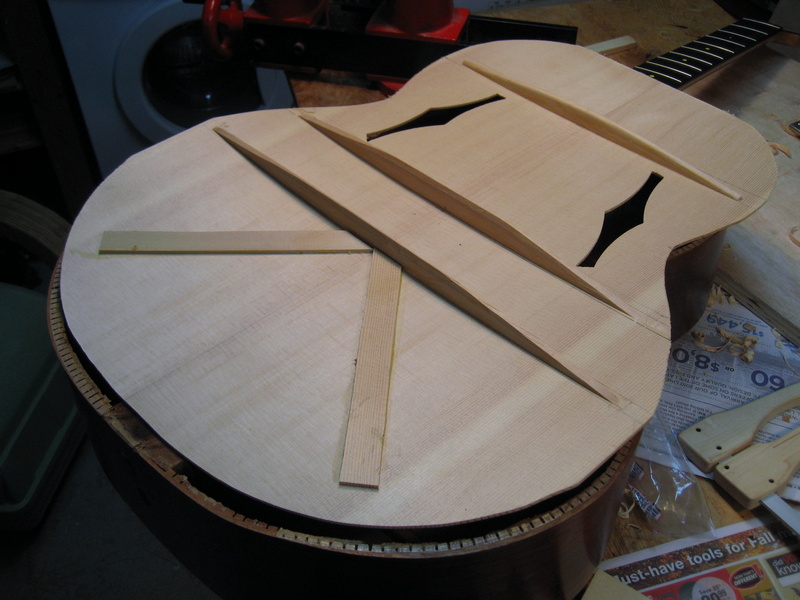

new top – domed plate

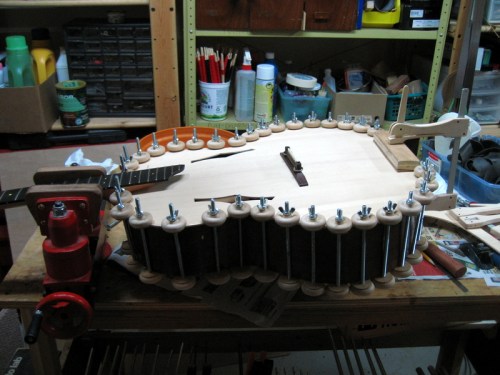

attaching new top to the old body
I didn’t try to disassemble the neck, because it was made like a classical guitar, with the ribs built into it. So I slid the new top into place and glued it on.

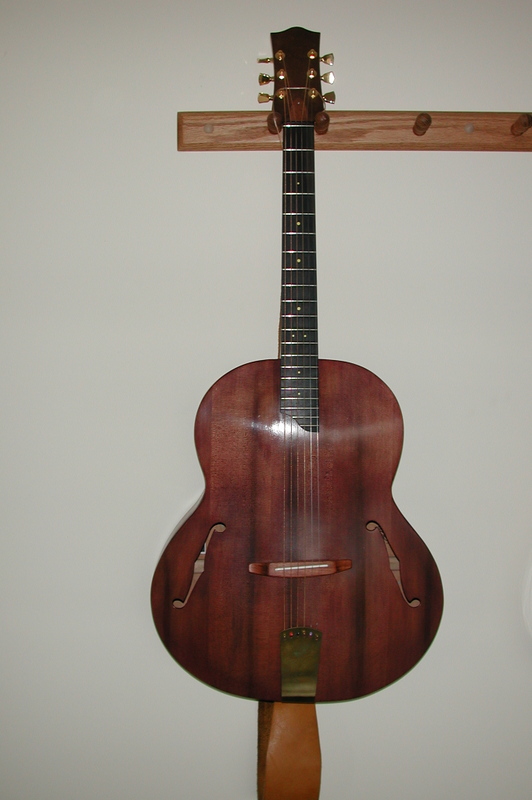

guitar #6 – version 2
I played this guitar for years, and stuck a face mounted pickup on it. It sounded great, but it was still huge and unwieldy. Last year I decided to have a go at turning it into a thinner, smaller guitar that I could use in the band, so I sawed the back of it off, and reformed the lower bout, reducing it by 2″. I put on a new back, and made a cutaway so I could access the high notes. I needed controls for the pickup however, so I cut a hole in the lower bout, planning to mount the controls there on a plate. When I played the guitar after making the hole, it sounded better! I decided to leave the hole, and I mounted the controls on the body between the two main braces. I stuck a mason jar ring into the new soundhole, because it just happened to fit. Everyone seems to notice this.

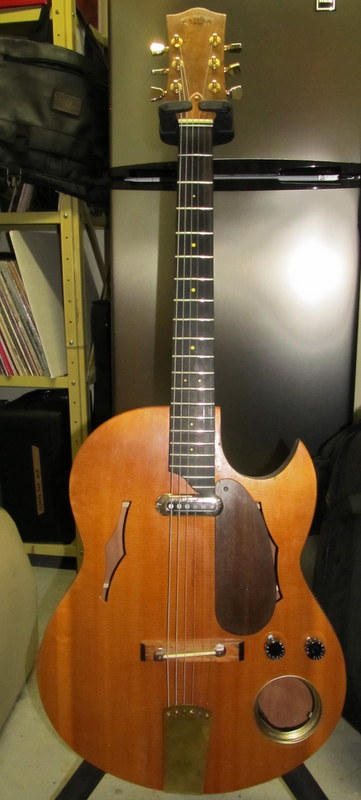

guitar#6 – version 3
This became my main guitar for band use, since everyone who heard it said it was better than my other guitar. This may have to do with the pickup, an old Framus single coil. I played it for a couple of years, and recently decided to build a copy. I hadn’t built a guitar in 5 years and thought this would be a good idea, if only to see if I still had it in me to do it. I began in February and worked on it steadily for the past 6 weeks. Building a guitar is intense , and I thought of little else for the time I was engaged on the project. The guitar has a maple body, stained gold with home made dye made from turmeric. Since it is the colour of beer, I have called this guitar the Corona Gold.

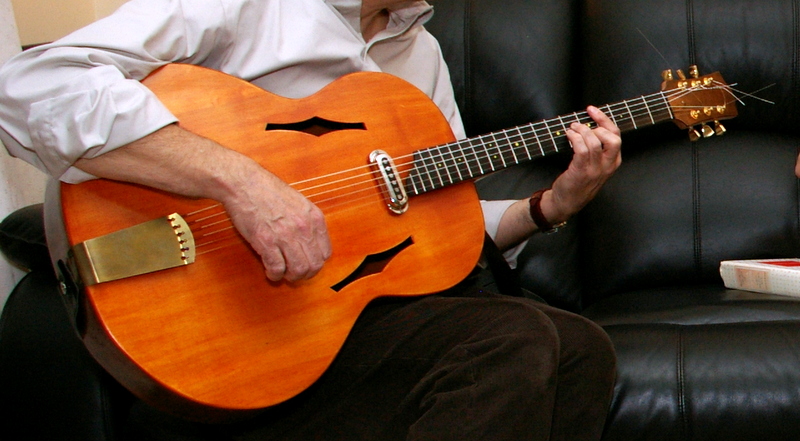

the Corona Gold
I copied guitar #6 closely, with a few improvements. Luckily I had a second old Framus pickup, so the pair of them sound pretty much the same plugged in. The new one has a bit more punch however, as it is a little deeper than #6. The new neck is attached with a dovetail joint. The body is exactly 70mm deep. I made the neck in two parts – the dovetail block was made first, then the neck part was glued to that. This allowed for a solid neck from end to end.
neck projects and is not connected to the body below

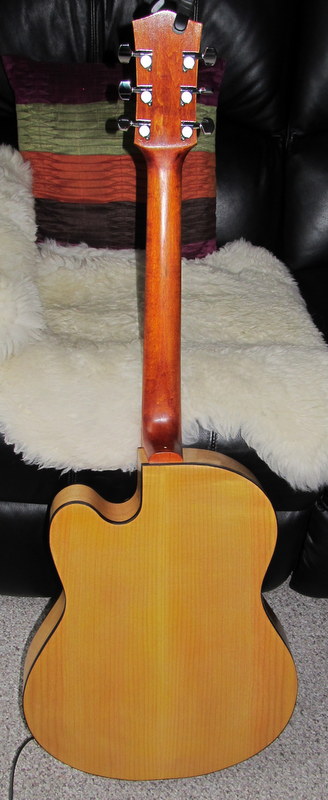

the back – gold stained maple
That’s it for now – I have too many guitars as it is!
