You may have seen this before – but if not, it’s “Superman” (the fictional one, not the real one), typing on his typewriter – A Remington SUPER-RITER. I bet he had a sore back, because of his arm position. He should have had one of my typewriter shelves, but alas they weren’t around in his time. Here is my Super-Riter:
genuine 1961 Remington Super-Riter

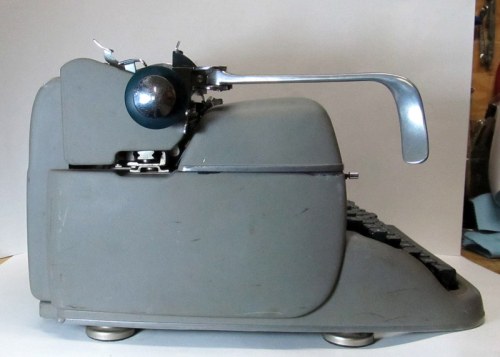

side view, viewers left/stage right
After using this new acquisition, I have to agree that it is SUPER! I’m not keen on big heavy desk models, since they are a pain to move around, and I have nowhere to permanently place one. But I grabbed this big boy from a thrift shop last week, because it called to me. I bent down and typed a few letters on it in the store, and the smooth action was remarkable. I had previously seen one at a church bazaar, and recalled that it was very quiet, smooth and precise. So this time I jumped in and brought it home. It needed a minimal amount of cleaning, but was otherwise in fine shape. There was one niggling problem however: the ribbon selector was erratic. After several sessions on the net, I discovered a very interesting feature of this machine – it folds open! Yes, they called this “fold-a-matic”. Munk, praise be to him, had the instructions for opening the back of the machine up. Polt, too, ever helpful in time of need, provided the service manual. With this combination of precise instructions I proceeded to open the machine. This is analogous to open heart surgery for typewriters, but typewriters feel no pain and cannot be killed, as far as we know, except by Superman.
open Super-Riter
There are numerous blogs with information on the Super-Riter, but this is the first one to feature an actual open heart operation. Be sure you’re seated and have someone with first aid experience nearby while watching this, unless you’re a doctor. It is shocking! The back opens up with the removal of a few screws. First one removes the platen, however, achieved by flipping two levers and lifting it off. Dead simple. Oops, I didn’t mean to say dead, excuse me.
flip the L shaped lever and lift out the platen (2 of)
Once you remove the screws, the back almost opens by itself. I tilted the back open, exposing the ribbon selector-vibrator parts and performed a minimally invasive procedure known as a selector-ectomy, involving a small screwdriver and some simple but precise adjustments. Then it was time to close, which was as simple as opening, except in reverse order. The biggest risk is losing a screw, which I often do, but this time I got lucky and there were no missing or leftover pieces after reassembly was complete.
hole for screw (centre) to remove for opening. Note the solid steel rails!

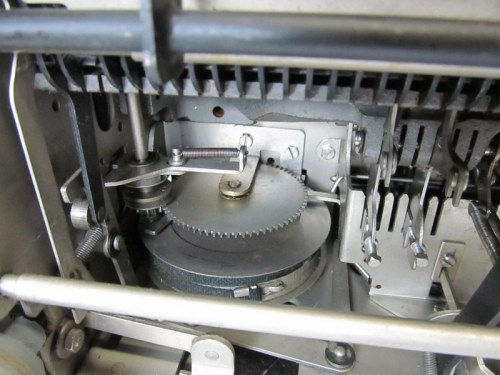

view of the main spring and tab mechanism (to the right of the motor)
ribbon selector-vibrator linkage
Super-Riter is back in one piece now and recovering well. It’s a marvelous bit of engineering, and it types with near perfection. The sole downside is the weight, 32 lbs. It’s so heavy that when you get typing, the machine will begin to sway even a solid table due to resonance and its mass. Placed on a heavy table, I imagine it would be heavenly. On a TV tray, extremely risky! Not for card tables this sucker.

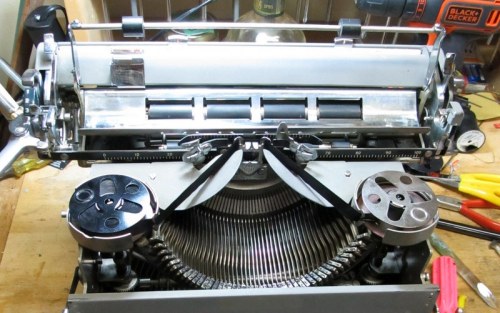

with platen out, it’s simple to remove all the rollers too.

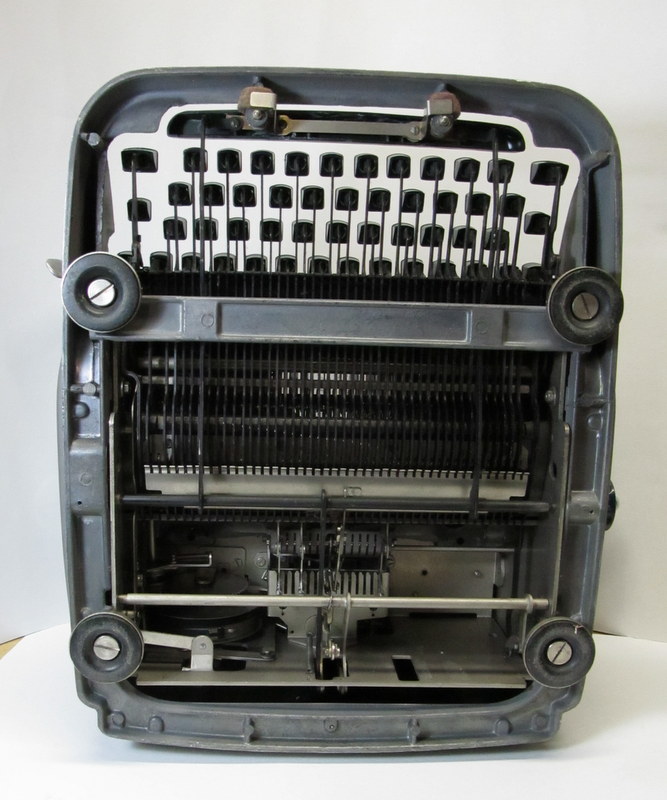

last but very important – the bottom
Indeed, what more could you want?

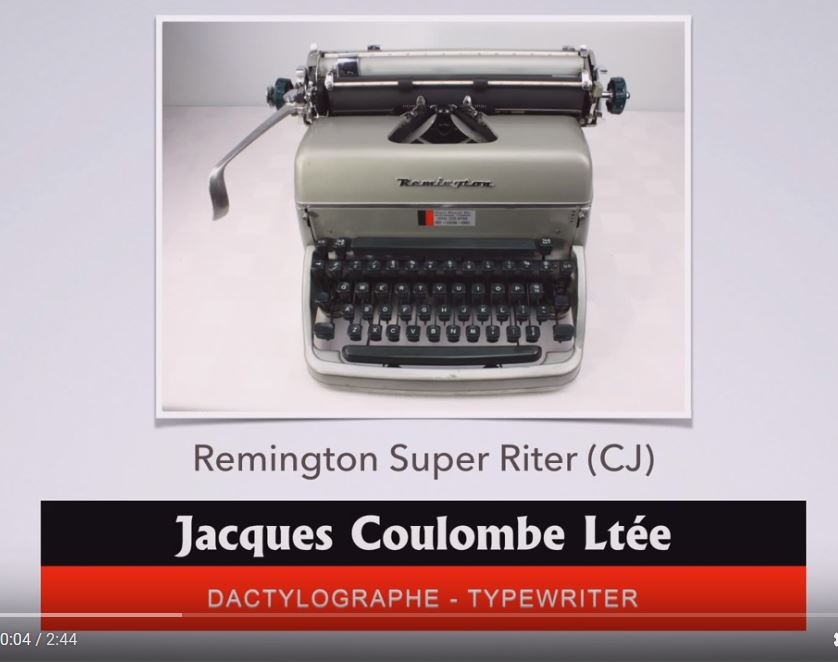

in case you need help to change the ribbon – there are still typewriter repairmen – in Montreal!
one last look
In summary – the Remington Super-Riter can best be described as a luxury typewriter, engineered and built to the very best standards, during the glory years of Western Civilization, c. 80-30 BC (Before China). During the early years of that era, men dictated and women typed on these things, that is until Superman came along and lead the way for men to use them without embarrassment. Now, men all over the world covet them and wouldn’t dream of allowing women near their precious machines. Women have moved on, however, so the joke is on men!
