Mystery Guitar

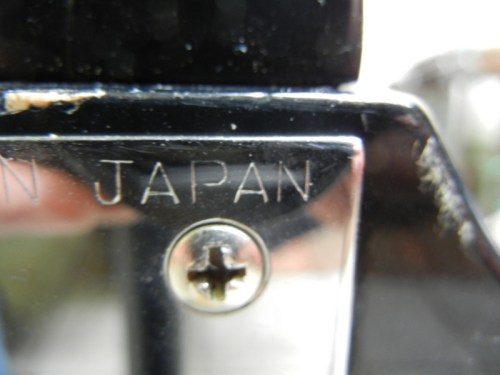

2-DSCN2861Last weekend I found this old Japanese electric guitar in the back corner of a thrift shop. It had no strings, one tuner gear and post was missing, and it looked rough – but I took a chance and bought it. I figured the cost would provide me the enjoyment/education of either fixing it or discovering it was irreparable. At the worst it was worth it just for the possibility of the spare parts!

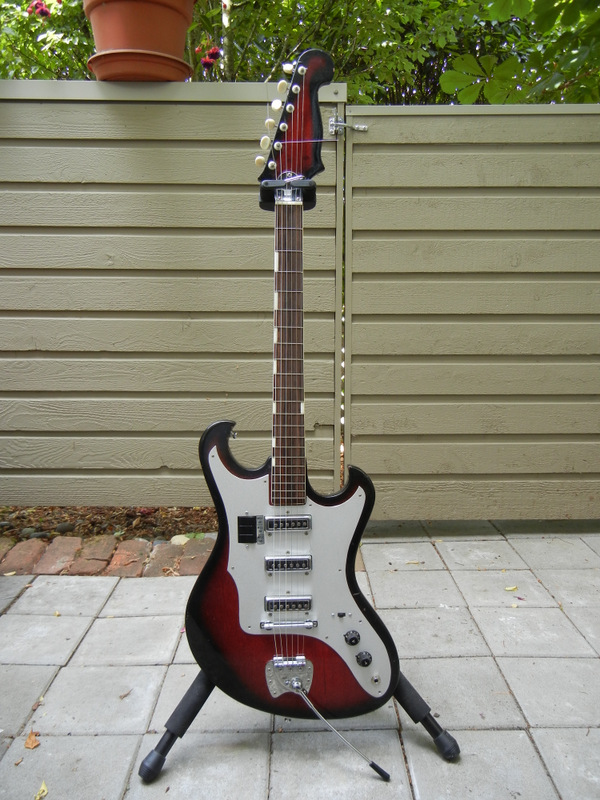

mystery guitar

mystery guitar

When I got it home I plugged it in. Static. I proceeded to disassemble it. The entire face plate comes off with all the electrics mounted to it. The jack was loose and the cable flopped around in the throat, causing intermittent signal. After replacing the cable plug with a new one, and cleaning up the switches it responded with a signal. All three pickups tested for continuity, so that seemed in order. Down to the guitar shop for strings next. With strings on the action was way too high, even with the bridge bottomed out. Neck off, the retaining screws had lost their bite in the wood. Holes filled and re-drilled, a 0.76mm plastic shim was inserted to tilt the neck just slightly backwards, dropping the string height. Action OK, next I discovered the nut was all wrong, with string spacing uneven and again too high. Fortunately the nut had so much extra meat on it I was able to file the grooves out and re-cut it.

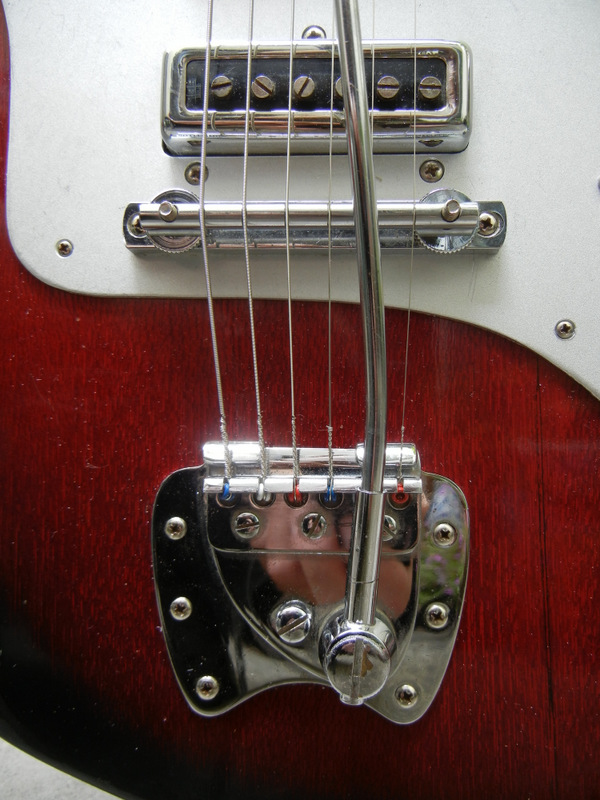

coil spring whammy

coil spring whammy

The tremolo needed work, of course. Under the plate is a coil spring, like a car suspension. Things were bent and rubbing but with a bit of filing and bending it too came together. The wheels to adjust the bridge height were gone, but I salvaged a pair from my parts box. Luckily they had the same thread. The bridge had no compensating angle however, but the face plate holes were oblong, which allowed me to move the treble end a bit closer to shorten the high strings.


individual rocker switches for each pickup

More work included scraping crud from the fingerboard with a razor blade, gluing various loose plastic neck trim bits, and scrubbing up the aluminum face plate. I fixed the missing tuner post with a salvaged post and gear, which was not perfect but seemed to work well enough.

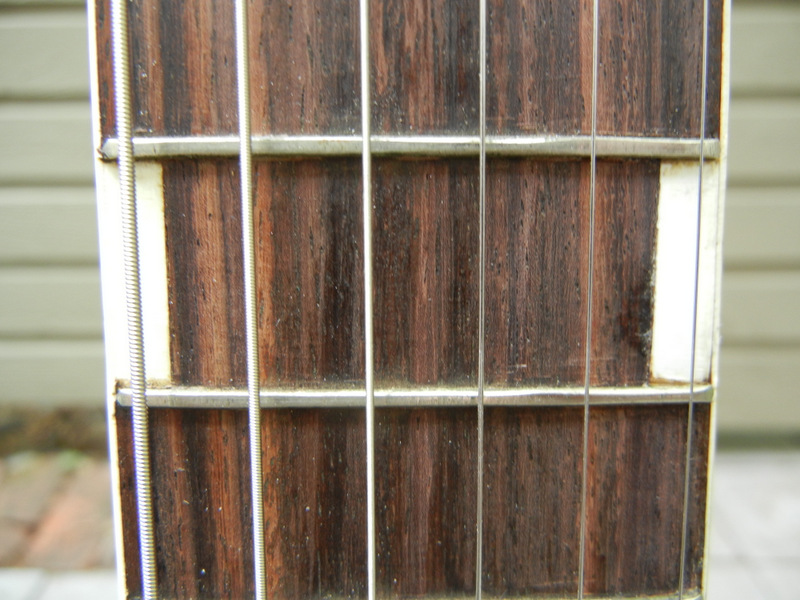

rosewood bound fingerboard, with tiny narrow frets

rosewood bound fingerboard, with tiny narrow frets

After one more check-over all was ready for the big test. Amplified it sounds surprisingly good! Despite the fact that the pickups are single coils they are very quiet. With three pickups and one master tone control the sound possibilities have a great deal of range, from high and clear to deep and crunchy. The scale length is 680mm (26.77″), which means the neck is very long indeed and while it’s not hard to play chords, it is quite a stretch out to first position! The neck is a honker however, almost like a bass. The whammy bar is effective – it gives just a little trem and returns back to tune.

For more on this, plus a cool video, check out the four pickup version here: Adventures in Baritone – 1965 Kingston FVN4 Japanese Electric Guitar | Drowning in Guitars!
